Winding Rewinding Machine



Winding Rewinding Machine

High Quality Winding Rewinding Machine for Offline Batch Coding of Mfg. Date, Expiry Date, Batch No., Sr.No and many more. It allows to apply on paper, film, and foil conversing industries and more with sophisticated process and hi-technology. Featuring with Torque control, tension controller, powder brake, printing System with Hot air ink drying and many more. Different types of Winding Rewinding Machine Manufacturer for Offline Batch Printing. Also, 25 different types of Film Winding Rewinding For Batch Coding, Winding Rewinding For Batch Printing, Winding Rewinding With Inkjet Printer, Winding Rewinding With Thermal Transfer Overprinter, Winding Rewinding With Multihead Inkjet Printer, Doctoring Film Strip Winding Rewinding, Roll To Roll Batch Printing Machine, Roll To Roll Winding Rewinding For Batch Printing, per client’s requirement.

 Web width

 100 to 1500 MM

 Max. Weight of Unwind

 100 to 1000 KG
(Different models for different weight)

 Max. Parent Reel Dia.

 400 MM

 Max. Rewind Reel Dia.

 400 MM

 Rewind Core Dia.

 76 MM

 Motor

 2 HP AC / DC Motor (3, 5 HP also available on suitable model)

 Maximum Designed Speed

 100 to 150 Mtrs / Min

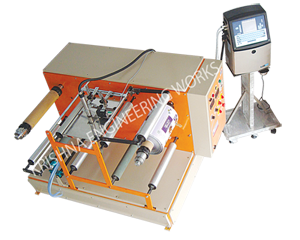

    Heavy Duty Winding Rewinding Machine for Batch Printing and Batch Coding
  • Cantilever design-balancing body for easy loading and unloading of parent / rewound reel. Movable unwind stage for Edge guiding System (Hydraulic Web Aligner).
  • Mechanical 1.5 / 2.5 Kg. Optional Magnetic powder brake with tension controller & Torque control potentiometer. Provision for incorporating Inkjet Printing System with Hot air ink drying.
  • The Model is specially designed for correcting badly wounded reels for inspection & doctoring operation.
  • It is great substitute to online coding / batching operation
  • Convenient height for operation
  • Compact Design
  • Variable speed drive
  • Double drive
